Description
The EGT Portable Toilet with Fan-shaped Door Shower is the ultimate solution for outdoor camping and activities. Its ingenious and compact design seamlessly combines multiple functions into one unit, offering a toilet, sink, and shower, all within a tight and easily transportable package. This standalone mobile bathroom unit is designed for convenience and simplicity, making it perfect for your outdoor adventures.
| Description | Specifications |
| Model | Mobile Toilets with shower-Fan-shaped Door |

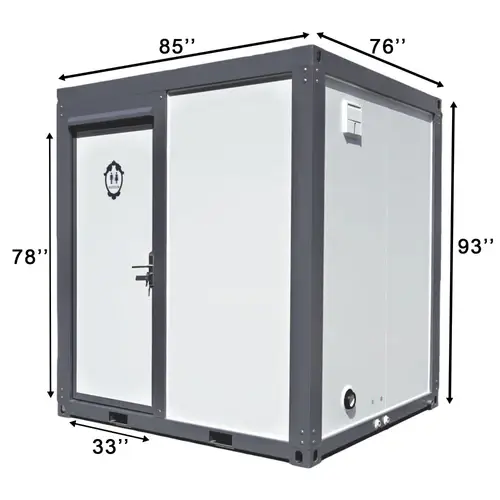

| Dimension (LxWxH) | 85″x76″x93″ |
| Interior Dimension (LxW) | 78.6″x68.4″ |
| Door Size | W 33″ x H 78″ |
| Net Area | 37.3 ft² |
| Frame | Steel |
| Surface Coating | High-Temperature Resistant Paint |
| Roof Material | 2-inch EPS fire-resistant & insulated roof panels |
| Wall Material | 2-inch EPS fire-resistant & insulated wall panels |
| Floor Material | Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value | 7.09~8.27 |
| Doors |
|
| Circuit Breaker Spec | 13~16 Amps |
| Power Supply | 110V~220V |
| Wire info | 3 core 2.5 sqmm |
| Wiring Instructions | White Wire: Neutral Wire Black Wire: Live Wire Green or Yellow-green Wire: Earth Wire |
| Flush volume | 1.6 gpf |
| Inlet Pipe Material | PPR Pipe |
| Inlet Pipe Inner diameter | 4/5 inch |
| Outlet Pipe Material | PVC Pipe |
| Outlet Pipe Inner diameter |
|
| Lowest Pipe Working Temperature | 14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level | B2 |
| Wind Load | 56 MPH |
| Snow Load | 125 lb/sqft |
| Forklift Pockets | Dimension: W7″x H3″ Distance between forklift pocket: 28″ |
| Lifespan | 15+ Years |
| Warranty | 1 Year |
Set up
There are 4 lifting lugs for transportation on the top and a forklift slot on the bottom. The equipment needs to be unloaded using a crane or forklift.
Footing options
- Concrete slab or pads
- Compacted ground
- Concrete or Steel stumps
- Note: The finished height of the surface must be level. Consulting a qualified person is recommended.
Note
The customer must arrange for a licensed Electrician to supply and Install all wiring.
All pipe connection needs thread seal tape, instead of glue, to seal.
Our Portable Restrooms need to be supplied with city water or well pump water, and all portable toilet “sewage” needs to be connected to the city sewer system or a simple septic system.
If this Portable Toilet with Fan-shaped Door Shower is used on a construction site, we recommend you connect toilets to the sanitary sewer system and connect cold water to the pipe system, and hot water to the heating burner. If not, you may need tanks outside the structure for waste.
- If it’s a concrete floor, please use twist-n-lock anchors on 4 corners of the portable restroom, and use wire rope to connect the anchor and the top corner of the portable restroom.
- If it’s a soil floor, please use 20 inches – 28 inches ground nails on 4 corners and use wire rope to connect the anchor and top corner of the portable restroom.
Feature
- Toilet w/Ceramic Bowl & Tank, Ceramic Vanity Sink w/Faucet
- Shower Fixtures, Paper Dispenser
- Power Outlet w/Dual USB, 110V Electric Vent Fan, Internal Light
- 1/2″ female inlet ports for hot & cold water
- 3″ black water/waste exhaust flexible hose (easily slide your 3″ PVC pipe onto flex fitting for waste)
- 1″ PVC water outlet exhaust port (for sink & shower water)
- Power Breaker, Locking Door w/ set of keys, Hinged Window
- Visual Men / Women Signage, Lifting Eyes, Forklift Pockets
Package Size
- L*W*H (inch): 85x76x93
- Weight (lb): 1576
- Forklift or equivalent is required for unloading
