Description Portable Restroom With Showers
Portable Restrooms with showers is perfect for outdoor camping and activities. This stand-alone mobile bathroom unit is very practical and easy to use. The compact design provides multiple functions all in one: toilet, sink, and shower. 110V power source, a water supply, and a septic system to tie in the waste from the toilet are needed for the proper operation of the complete unit. The modern interior design also adds more beauty to the unit.
| Description | Specifications |
| Model | Portable Restroom w/ Showers |

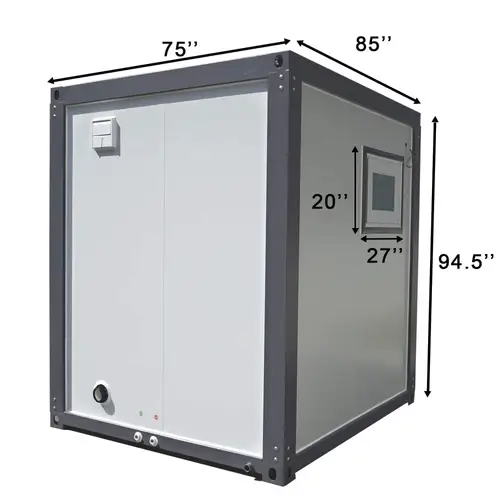

| Dimension (LxWxH) | 85″x75″x94.5″ |
| Interior Dimension (LxW) | 78.6″x68.4″ |
| Door Size | W 33″ x H 78″ |
| Net Area | 37.3 ft² |
| Frame | Steel |
| Surface Coating | High-Temperature Resistant Paint |
| Roof Material | 2-inch EPS fire-resistant & insulated wall panels |
| Wall Material | 2-inch EPS fire-resistant & insulated wall panels |
| Floor Material | Anti-skid and wear-resistant floor leather+Hard PVC board |
| R-value | 7.09~8.27 |
| Doors |
|
| Circuit Breaker Spec | 13~16 Amps |
| Power Supply | 110V~220V |
| Wire info | 3 core 2.5 sqmm |
| Wiring Instructions | White Wire: Neutral Wire Black Wire: Live Wire Green or Yellow-green Wire: Earth Wire |
| Flush volume | 1.6 gpf |
| Inlet Pipe Material | PPR Pipe |
| Inlet Pipe Inner diameter | 4/5 inch |
| Outlet Pipe Material | PVC Pipe |
| Outlet Pipe Inner diameter |
|
| Lowest Pipe Working Temperature | 14℉ (if iced, please use 122℉ water to melt) |
| Fire-proof Level | B2 |
| Wind Load | 56 MPH |
| Snow Load | 125 lb/sqft |
| Forklift Pockets | Dimension: W7″x H3″ Distance between forklift pocket: 28″ |
| Lifespan | 15+ Years |
| Warranty | 1 Year |
Setting up Portable Restrooms with showers
There are 4 lifting lugs for transportation on the top and a forklift slot on the bottom. The equipment needs to be unloaded using a crane or forklift.
Footing options
- Concrete slab or pads
- Compacted ground
- Concrete or Steel stumps
- Note: The finished height of the surface must be level. Consulting a qualified person is recommended.
Note
The customer must arrange for a licensed Electrician to supply and Install all wiring.
All pipe connection needs thread seal tape, instead of glue, to seal.
Our Portable Restrooms with showers need to be supplied with city water or well pump water, and all portable toilet “sewage” needs to be connected to the city sewer system or a simple septic system.
If this Portable Restroom With Showers is used on a construction site, we recommend you connect toilets to the sanitary sewer system and connect water to the pipe system. If not, you may need tanks outside the structure for waste.
- If it’s a concrete floor, please use twist-n-lock anchors on 4 corners of the portable restroom, and use wire rope to connect the anchor and the top corner of the portable restroom.
- If it’s a soil floor, please use 20 inches – 28 inches ground nails on 4 corners and use wire rope to connect the anchor and top corner of the portable restroom.
Feature of Portable Restroom with Showers
- Toilet w/Ceramic Bowl & Tank, Ceramic Vanity Sink w/Faucet
- Shower Fixtures, Shower Curtain, Paper Dispenser
- Power Outlet w/Dual USB, 110V Electric Vent Fan, Internal Light
- 1/2″ female inlet ports for hot & cold water
- 3″ black water/waste exhaust flexible hose (easily slide your 3″ PVC pipe onto flex fitting for waste)
- 1″ PVC water outlet exhaust port (for sink & shower water)
- Power Breaker, Locking Door w/ set of keys, Hinged Window
- Visual Men / Women Signage, Lifting Eyes, Forklift Pockets
Package Size of Portable Restrooms with showers
- L*W*H (inch): 75x85x95
- Weight (lb): 1941
- Forklift or equivalent is required for unloading
Parts Service
- Lock
- Faucet
- Grey Water Outlet
- Toilet Seal
- Fan
- Light Switch
- Door Vent
- Shower Diverter
